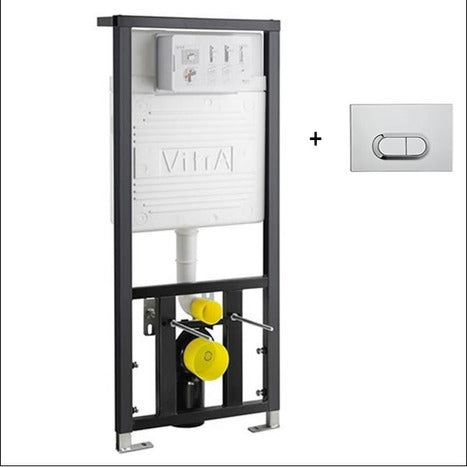

VitrA Wall hung toilet support frame
Ideally suited to the VitrA V Care Essential and Comfort wall hung bidet toilet. Front actuation, with oval style push button dual flush plate.
Frame specification
- Suitable for modern wall hung WC pans with 18 /23 cm pan fixings
- Installation type: rapid ;Installation (front wall: light weight construction-gypsum plate, back wall: brick
- 12cm frame depth.
- Working Pressure: 0.5 - 10 Bar (recommended 3-5 Bar)
- Water Saving
- Strength and Stability, designed to support weights of up to 400kg.
- Regular frames can be used in solid wall, stud wall and double stud walls
- Control system: electronic and mechanic control
- Water capacity: 3-6L (adjustable)

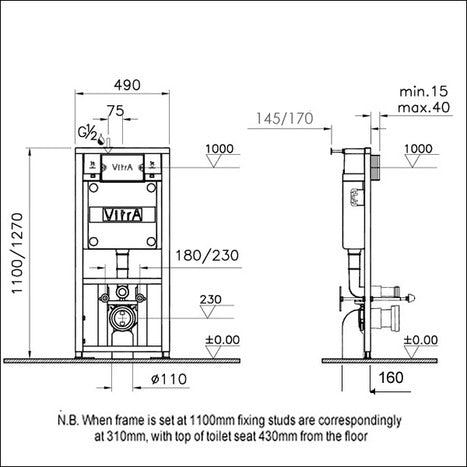

- Height: 1100 / 1270 mm
- Width: 490 mm
- Depth: 145 - 170mm
- 5 year, Full VitrA Manufacturer's Warranty
Dual oval style flush plate specification
- Dimensions: Height: 165 x Width: 245mm
- Mirror Chrome finish
- Dual Oval style Flush Buttons
- Designed to work with Vitra Concealed Cisterns
- 5 year, Full VitrA Manufacturer's Warranty
Click HERE to view a short Installation video demonstrating how to install the VitrA wall frame
Standard shipping in 5 ~ 7 days, Express options available
CE Certified for installation within the European Union
Reviews +
Reviews
Support +
Support
Delivery +
Delivery
Why Choose Us
-
Fast Delivery
Quick and secure shipping to get your products delivered without delays
-
Expert Advice
Get guidance from specialists to help you choose the right solution with confidence
-
Premium Brands
We offer trusted global brands known for quality, innovation, and durability
-
UK Based Support
Reliable local support before and after your purchase whenever you need it
What is the difference between Wall Hung, Floor Standing and Close Coupled Toilets?
Wall Hung toilets are suspended from the floor and require a wall frame for mechanical support. The wall frame is usually hidden within a wall, a cabinet or 'boxed in' using MDF or plasterboard and tiled.
Floor Standing units are designed to sit on the floor, with the back flush to a cabinet. They require an separate concealed cistern fitted within the cabinet.
Close Coupled toilets are a more traditional style toilet, with a visible, usually porcelain cistern sat on the back on the pan.
What is the cost of delivery within the UK
A standard heavy weight courier delivery charge of £48 to mainland U.K is charged or may be picked up from our HP4 1QR warehouse.
How long is the warranty for?
Seat 2 years warranty parts and labour.
Toilet/cistern 5 years all parts.
How long does it take for the product to be delivered?
U.K. Delivery in 2 ~ 7 days from receipt of order depending your location.
Do I need to buy a frame for wall mounted toilet?
Like for any other, standard wall mounted toilets you need a frame.
