GMW-7035:Japanes Style Suspended Bidet Shower Toilet: A stunning combination of the remote-controlled Aqua-Lava smart wall hung bidet toilet exquisitely paired with our Dual flush tempered glass monolith cistern cabinet The contemporary twist on the traditional wall hung toilet Please click the image to be directed to the product page for full specification details and Installation guides. Free U.K. delivery, an additional delivery charge of £39.95 will apply to areas of the U.K. considered remote by the delivery companies such as but not limited to the Highlands and Islands of Scotland and to Mainland Europe. (Please view more information by clicking the tab below for a list of locations considered "remote") Delivery in 2 ~ 7 days from receipt of order depending on your location.

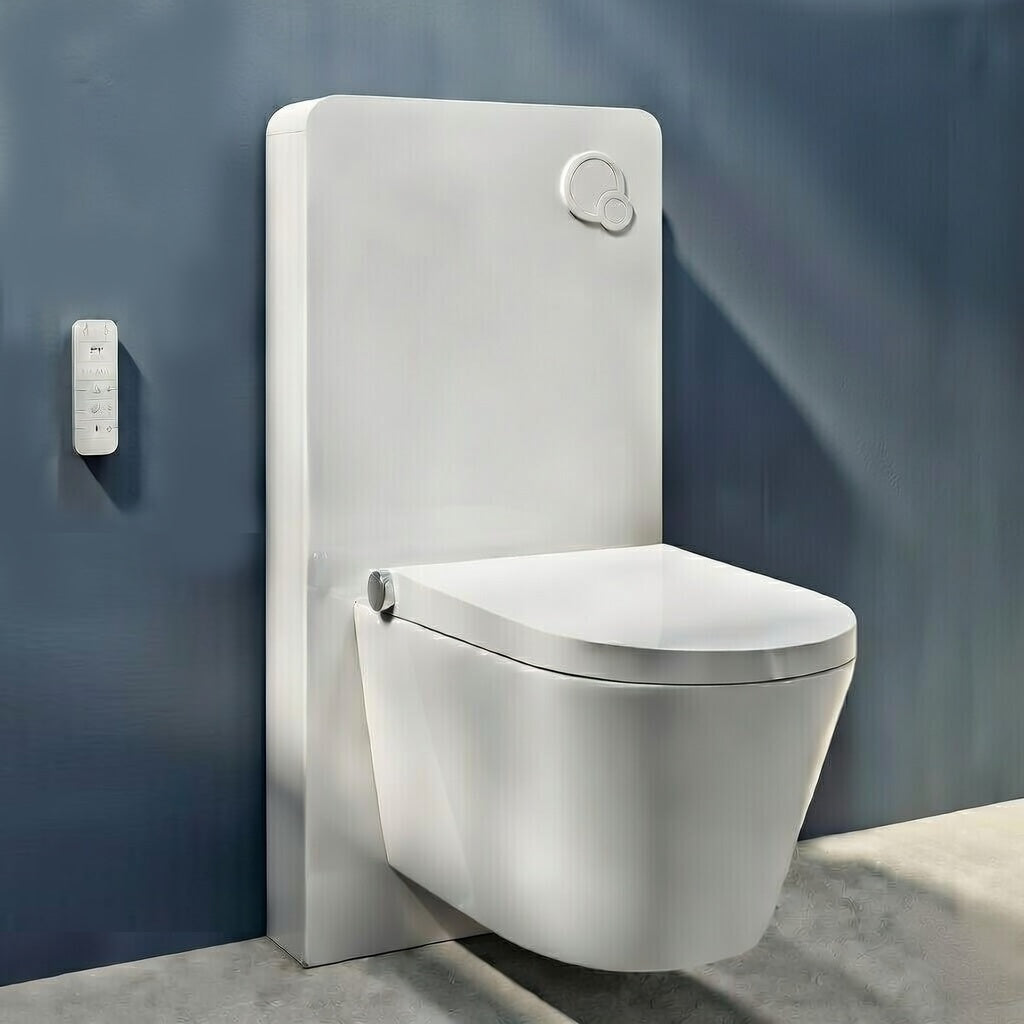

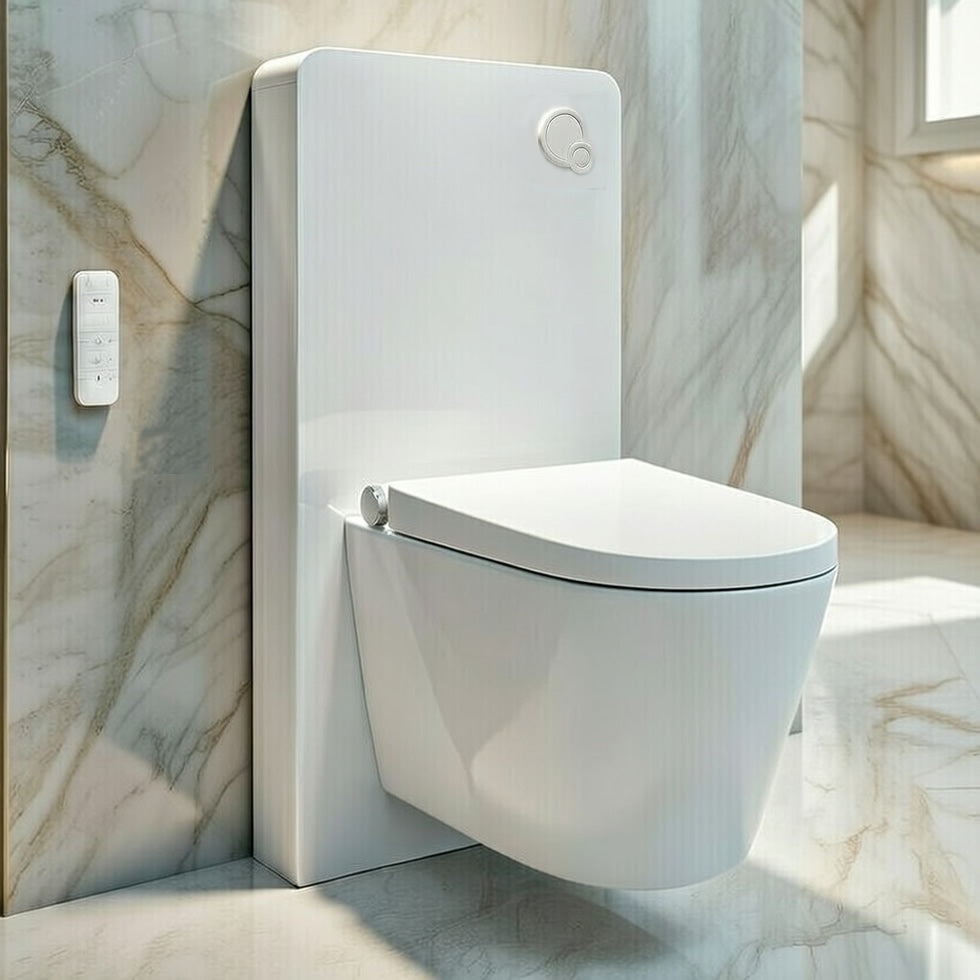

True modern hygienic living delivered, stay fresh and shower clean all day long. True elegance and excellence in design. The GMW-7035: Suspended Bidet Shower Toilet, a stunning combination of the remote-controlled Aqua-Lava smart wall hung bidet toilet exquisitely paired with our tempered glass monolith dual flush cistern cabinet.. The contemporary twist on the traditional wall hung toilet, an absolutely stunning addition to any bathroom or toilet.

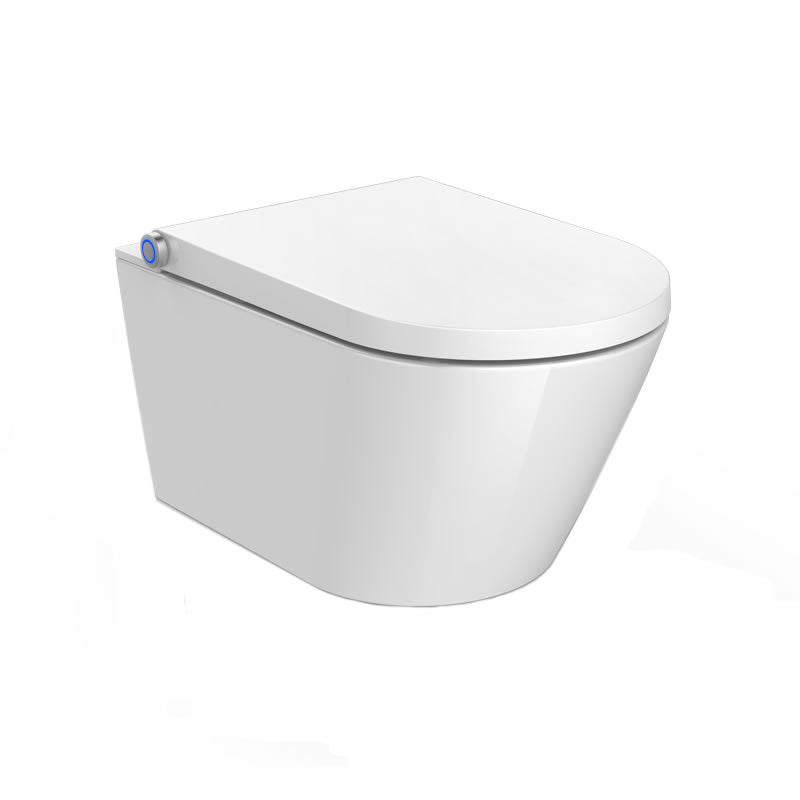

Aqua Lava: Wall Hung Japanese Smart Toilet Bidet:
True contemporary elegance and excellence in design. so much more than just another Toilet. Offering an all-encompassing list of features, such as a remote control, LED lights, adjustable water temperature, warm air Dryer and so much more, owing to its advanced features this product even requires its own power supply for operation. From the absolutely exclusive self-cleaning option to the water-saving button and the soft-close lid closing system, this unit will possibly be just what you've been searching for to provide you that fresh and clean feeling every time you visit the bathroom.
Key Features
Rear wash
Feminine wash
Adjustable water temperature: 5 settings
Adjustable water pressure: 5 settings

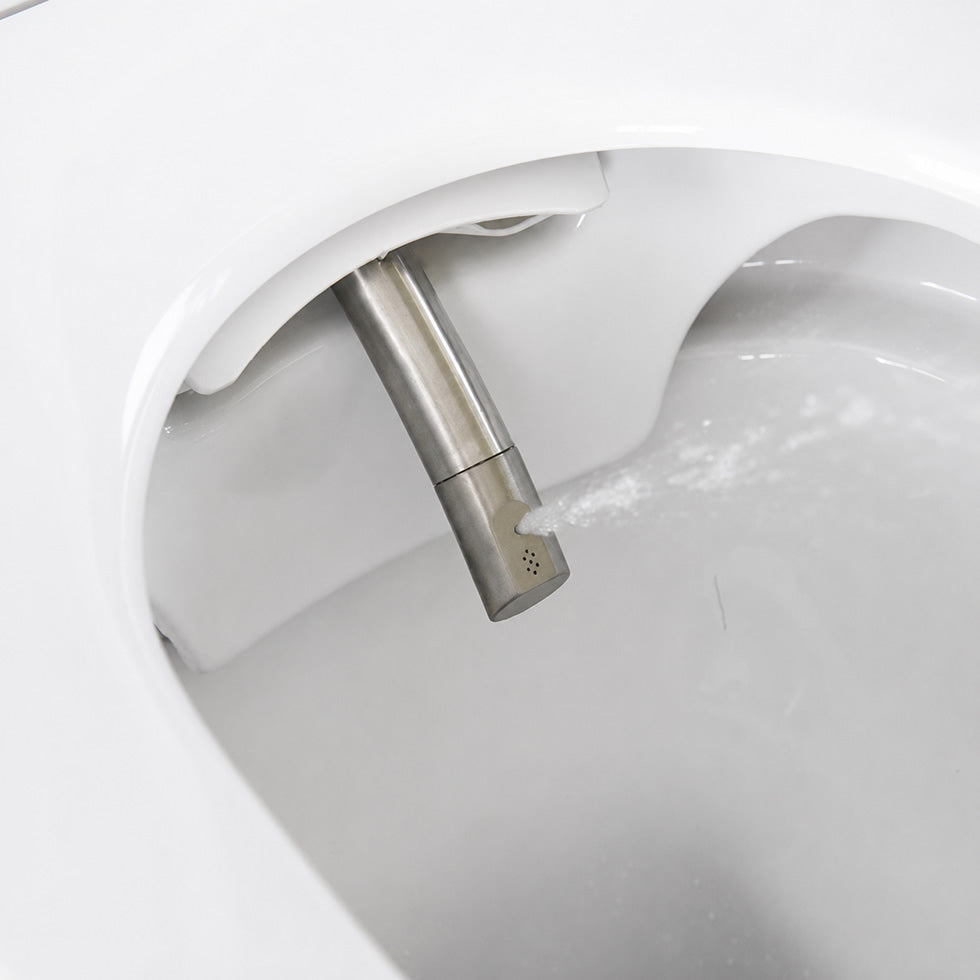

Adjustable nozzle positioning: 5 settings
Nozzle Oscillation
Warm Air Drying: 5 settings
Soft Close Seat and Lid
Dual 3 / 6 litre flushing
ClickHEREto view short video of the varios functions
Installation Requirements
Connection piping to the sewerage waste system
The seat requires a mains water supply of between 0.7 ~ 7.0MPa / 0.7 ~ 7 Bar pressure.
A fully compliant 10A 230V power source protected by a 30mA RCD (in U.K. to BS7671)
Before Installing if you have any doubts please call 01442 843746 for technical guidance. The installation guide can be viewed in the download section of this product page.
General Specification
1) Pan and Cistern
Contemporary modern design
Made from High-Quality White Vitreous China
Rimless pan for extra hygiene and ease of cleaning
Suitable for horizontal & bottom soil pipe connections
Net Weight: 35Kg
Dimensions: 593 x 370 x 445mm
2) Wash
• Water Supply Connection: 3/8” BSP
• Voltage: 220V ~ 240V AC 50 / 60Hz
• Appliance Power Rating: 1600W
• Water Feed Pressure: 0.7 ~ 7.0MPa / 0.7 ~ 7 Bar
• Water Feed Temperature: 4 ~ 35°C
• Ambient Room Temperature: 4 ~ 40°C
• Rating: IPX4
• Flow Rate: 350 ~ 650ml/min
• Water Spray Temperature: 31 ~ 39°C
• Wash Cycle Time: 3mins
• Heating Mode: Mini tank
• Water Heater: 1200w on maximum power
3) Dryer
• Maximum Air Speed: 5m/S
• Dryer Power: 280W
• Drying Cycle Time: 3mins
• Drying Air Temperature: 35 ~ 50°C
4) Remote Control
• Frequency Range: 2460MHz
• Maximum RF Output Power: -10dBm
•Requires 2 x CR2032 3v Lithium Button Batteries (Not Included)
5) Materials
Easy detachable: a convenient bracket plate provides easy attachment and detachment of the main body for an easy toilet cleaning.
Soft-closing lid and seat: Function to make lid and seat open and close smoothly
Easy lid removal: Lid is easy to install and remove for perfect cleaning, Lid bears our Aqua-Sigma trademark logo.
Nano-silver technology: applied to the water tank and nozzles give them antibacterial properties.
Ultrasonic waterproof soldering seat: It is easy to use with safety in a humid toilet room with the help of spinning design providing a waterproof function and preventing water drops from being soaked into.
Antibacterial resins: Adapted antibacterial resin preventing colitis germs and sundry germs from being propagated.
Toilet pan: pure white vitreous china
6) Safety & Compliance
Safety in domestic appliances.
Electromagnetic compatibility.
Wash: Thermal Fuse, Level Switch, Thermostat
Dryer: Thermal Cut-off, Thermostat
CE certified for compliant Installation in the United Kingdom & European Union
Backflow Prevention: Air Gap, WRAS Compliant / EN1717

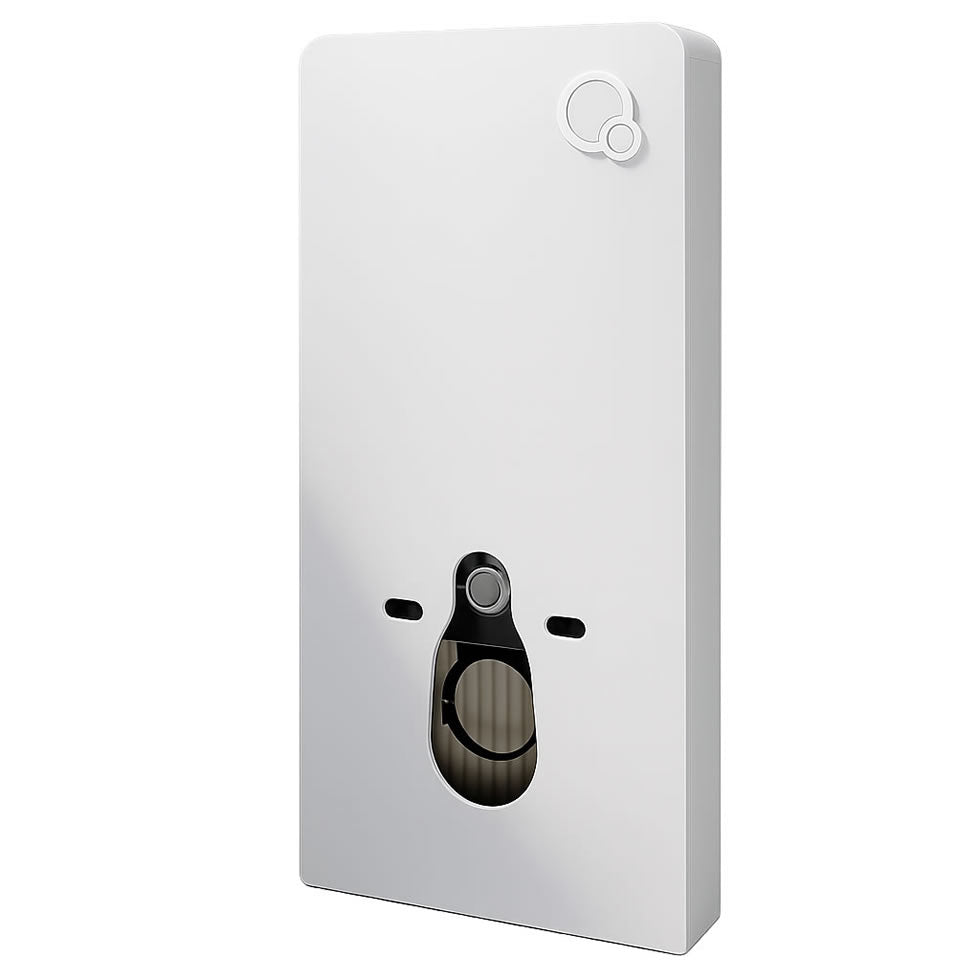

Monolith White Tempered Safety glass cistern cabinet with touchless flushing
• Ultra-slim cabinet cistern for Floor standing toilets (Also available for floor standing units units,) • Alpine White 8mm tempered glass finish with shatterproof backing safety film • Brushed Aluminium Side Panels • Dual flush 3/6L cistern • Easy installation and maintenance, all working parts can be accessed from the top panel • Supports weights of up to 400kg • 5-year Warranty against manufacturing defects
Dimensions: • Height - 1003mm • Width - 483mm • Depth - 108mm • See Dimensional drawing for further dimensions
Manufactures Warranty
Electronic seat 2 years warranty, one-year parts
Please Note. To achieve full compliance an ‘Approved’ single check valve or some other no less effective back-flow prevention device providing backflow prevention protection to at least fluid category two must be fitted at the point of connection between the water supply and the water inlet to this appliance. If in any doubt please consult a qualified plumber.
