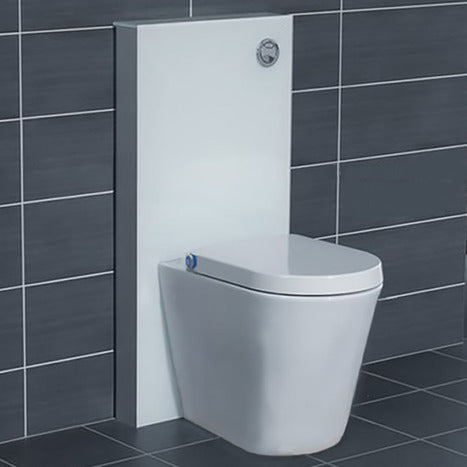

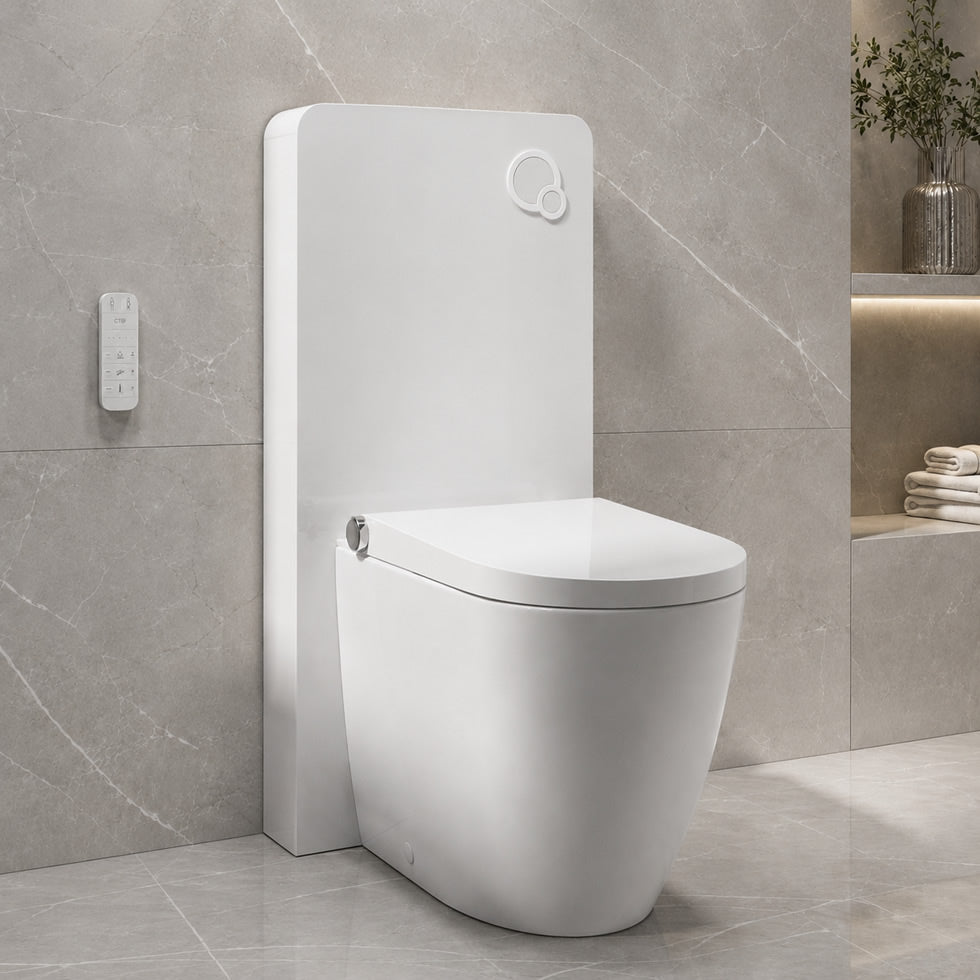

GMF-7035: Monolith Close Coupled Smart Japanese Shower Toilet

GMF-7035: Shower Toilet: The contemporary twist on the traditional close coupled toilet

True contemporary elegance and excellence in design. GMF-7035: Shower Toilet: A stunning combination of the remote-controlled Aqua-Lava smart bidet toilet exquisitely paired with our tempered glass monolith cistern cabinet. The contemporary twist on the traditional close coupled toilet, an absolutely stunning addition to any bathroom or toilet.

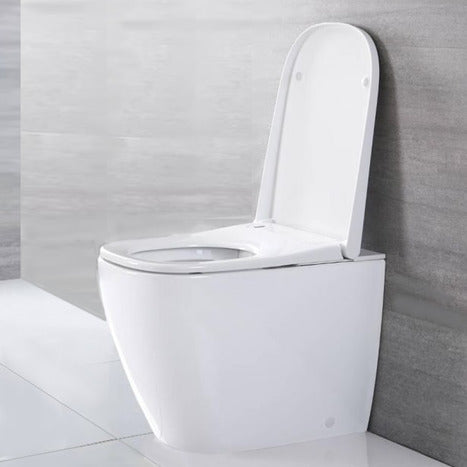

Aqua Lava: Japanese Smart Toilet Bidet

True contemporary elegance and excellence in design. So much more than just another toilet. Offering an all-encompassing list of features, such as a remote control, LED lights, adjustable water temperature, warm air dryer and so much more, owing to its advanced features this product even requires its own power supply for operation. From the exclusive self-cleaning option to the water-saving button and the soft-close lid closing system, this unit will provide you with a fresh and clean feeling every time you visit the bathroom.

Key Features

• Simple to operate via a remote control
• Rear rectal wash
• Feminine wash
• Adjustable water temperature: 5 settings
• Adjustable water pressure: 5 settings
• Adjustable nozzle positioning: 5 settings
• Nozzle oscillation
• Water pulsation
• Warm Air Drying: 5 settings
• Night light
• Soft Close Seat and Lid
• Click HERE to view a short video of the various functions

Installation Requirements

• Connection piping to the sewerage waste system
• The seat requires a mains water supply of between 0.7 ~ 7.0MPa / 0.7 ~ 7 Bar pressure.
• A fully compliant 10A 230V power source protected by a 30mA RCD (in U.K. to BS7671)
• Before installing, if you have any doubts, please call 01442 843746 for technical guidance. The installation guide can be viewed in the download section of this product page.

General Specification

1) Pan and Cistern

• Contemporary modern design
• Made from high-quality white vitreous china
• Rimless pan for extra hygiene and ease of cleaning
• Suitable for horizontal & bottom soil pipe connections
• Net Weight: 35Kg
• Dimensions: 593 x 370 x 445mm

2) Wash

• Water Supply Connection: 3/8” BSP
• Voltage: 220V ~ 240V AC 50 / 60Hz
• Appliance Power Rating: 1600W
• Water Feed Pressure: 0.7 ~ 7.0MPa / 0.7 ~ 7 Bar
• Water Feed Temperature: 4 ~ 35°C
• Ambient Room Temperature: 4 ~ 40°C
• Rating: IPX4
• Flow Rate: 350 ~ 650ml/min
• Water Spray Temperature: 31 ~ 39°C
• Wash Cycle Time: 3mins
• Heating Mode: Mini tank
• Water Heater: 1200w on maximum power

3) Dryer

• Maximum Air Speed: 5m/s
• Dryer Power: 280W
• Drying Cycle Time: 3mins
• Drying Air Temperature: 35 ~ 50°C

4) Remote Control

• Frequency Range: 2460MHz
• Maximum RF Output Power: -10dBm
• Requires 2 x CR2032 3v Lithium Button Batteries (Not Included)

5) Materials

• Easy detachable: a convenient bracket plate provides easy attachment and detachment of the main body for easy toilet cleaning.
• Soft-closing lid and seat: Function to make lid and seat open and close smoothly
• Easy lid removal: Lid is easy to install and remove for perfect cleaning, Lid bears our Aqua-Sigma trademark logo.
• Nanosilver technology: applied to the water tank and nozzles give them antibacterial properties.
• Ultrasonic waterproof soldering seat: It is easy to use with safety in a humid toilet room with the help of spinning design providing a waterproof function and preventing water drops from being soaked into.
• Antibacterial resins: Adapted antibacterial resin preventing colitis germs and sundry germs from being propagated.
• Toilet pan: pure white vitreous china

6) Safety & Compliance

• Safety in domestic appliances.
• Electromagnetic compatibility.
• Wash: Thermal Fuse, Level Switch, Thermostat
• Dryer: Thermal Cut-off, Thermostat
• CE certified for compliant installation in the United Kingdom & European Union
• Backflow Prevention: Air Gap

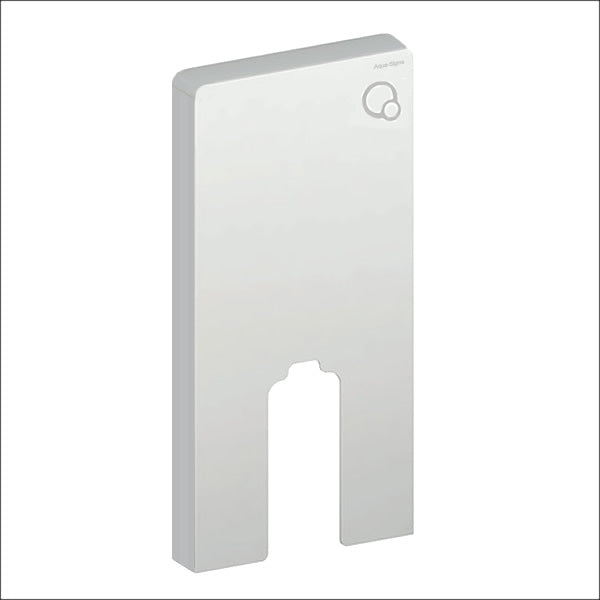

Monolith White Tempered Safety Glass Cistern Cabinet by Rak

Ultra-slim cabinet cistern for floor-standing toilets (Also available for wall-hung units, see model CWW-850M)
Alpine White 8mm tempered glass finish with shatterproof backing safety film
Brushed aluminium side panels
Dual flush 3/6L cistern
Easy installation and maintenance, all working parts can be accessed from the top panel
Supports weights of up to 400kg
5-year warranty against manufacturing defects
Dimensions:
Height - 1003mm
Width - 483mm
Depth - 108mm

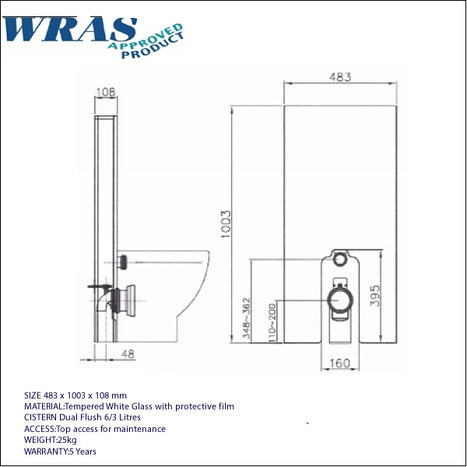

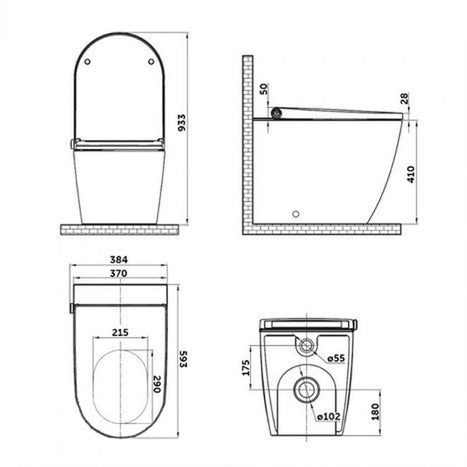

See dimensional drawing for further dimensions

Manufacturer's Warranty

• Electronic seat 2 years warranty, one-year parts

Please note: To achieve full compliance an ‘Approved’ single check valve or some other no less effective backflow prevention device providing backflow prevention protection to at least fluid category two must be fitted at the point of connection between the water supply and the water inlet to this appliance. If in any doubt please consult a qualified plumber.

Delivered in 2-7 working days from receipt of order depending on your location. There is an additional charge of £39.95 for areas in the U.K. considered "Remote" by our courier and £89.95 to Europe and non-mainland U.K. Please click for REMOTE AREA LOCATIONS
