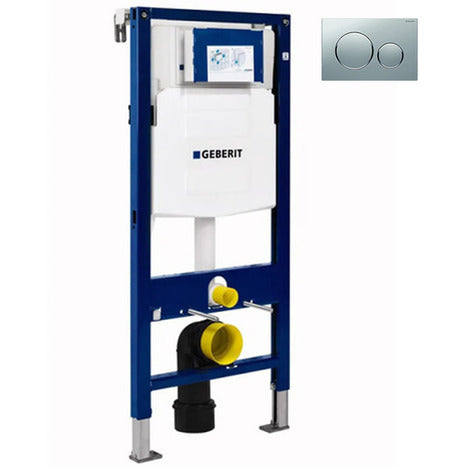

The Geberit Duofix WC Frame 1.12m Part No 111.383.00.6 is constructed using heavy-duty steel, then galvanized to give superb durability. It features a full-height frame ideal for installation in stud walls, includes a top-quality cistern with full and half flush options and offers tool-free maintenance. Bundled with a Geberit matt chrome dual flush plate.
Product Description
The Geberit Duofix WC Frame 1.12m Part No 111.383.00.6
Constructed using heavy-duty steel, then galvanized to give superb durability. It features a full-height frame ideal for installation in stud walls, includes a top-quality cistern with full and half flush options and offers tool-free maintenance.
Installation Application:
- For drywall construction
- For installation in part- or room-height pre-wall installations
- For installation in room-height installation walls
- For installation in part- or room-height Geberit Duofix system walls
- For wall-hung WCs with connection dimensions in accordance with EN 33:2011
- For wall-hung WCs with projection up to 62 cm
- For floor constructions 0–20 cm
Specification
- Self-supporting frame, powder-coated
- Frame with 9 mm drilling holes for fastening in wood frame construction
- Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
- Galvanised feet
- Feet adjustable 0–20 cm
- Non-slip leg supports
- Rotatable foot plates
- Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
- Connection bend can be mounted without tools at different depths, adjustable range 45 mm
- Fastening for connection bend, sound-absorbing
- Concealed cistern with front actuation
- Concealed cistern fully insulated against condensation
- Cistern fulfils standard requirements in accordance with EN 14055, Class II
- Immediate post flush possible with factory setting
- Matt dual flush plate included, Par No 15.882.JQ.1
- Tool-free installation and maintenance work on concealed cistern
- Water supply connection on the rear or top centre
- Protection cover box for service opening protects against moisture and dirt
- Protection box for service opening can be cut to length
- Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
- With fastening option for electrical connection
Technical Data
- Flow Pressure: 0.1-10 bar
- Maximum operating temperature (water): 25°C
- Flush Volume (Factory setting): 5.8 and 3 litres
- Flush volume small (Adjustment range): 3-4 litres
Product Includes
- Water supply connection Rp 1/2’’, compatible with MF, with integrated angle stop valve and hand wheel
- Protection box for service opening
- 2 Wall anchors
- Connection set for WC, 90mm
- Connection bend 90° made of PE-HD, 90mm
- Adaptor socket made of PE-HD, 90mm
- 2 Protection plugs
- Cup for flush volume reduction 4.0/2.6 litres
- 2 Threaded rods M12
- Fastening material
Note Well
- Any boarding must be fixed tight up against the face of the Duofix frame and screwed directly to the frame
- The cistern can be operated with used with mains water or fltered clean rain water
- Flush valve features settings to enable either a 6 l and 3 l flush or a 4.5 l and 3 l flush.
Geberit Guarantee
Delivery
- Standard shipping in 5 ~ 7 days, Express options available, CE Certified for installation within the U.K and European Union.
