CCP-6600-SH: Bidet Shower Smart Toilet

CCP-6600-SH: Bidet Shower Smart Toilet, with remote control: A stunning combination of our remote controlled electronic bidet seat and our exquisitely styled rimless close coupled toilet in pure white vitreous china. The bidet shower toilet that washes and dries you.. This aesthetically appealing bidet toilet offers an enhanced solution to personal hygiene providing an all day shower-fresh feeling and is also well suited to customers with physical challenges requiring additional assistance with cleaning. VAT exemption scheme is available for eligible customers
Please click image to be directed to the product page for full specification details and Installation guides.
Free delivery in mainland U.K., an additional delivery charge of £89.95 will apply to areas of the U.K. considered remote by the delivery companies such as but not limited to the Highlands and Islands of Scotland. (Please view more information by clicking the tab below for a list of locations considered "remote") Delivery in 2 ~ 7 days from receipt of order depending on your location

Product Description

CCP-6600-SH Bidet Shower Toilets:

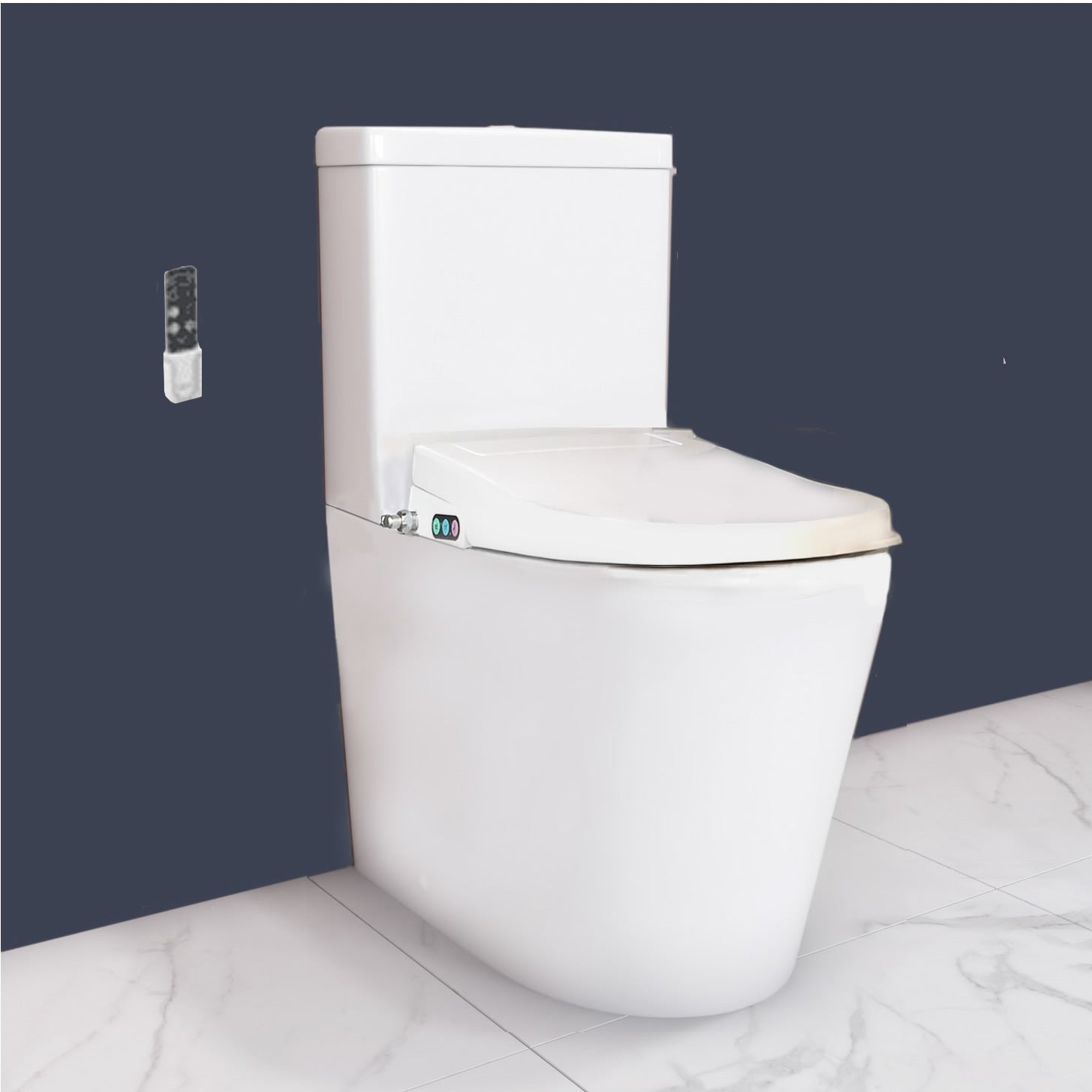

A combination standard height close coupled remote control shower toilet in pure white vitreous china.

True contemporary elegance and excellence in design. An exquisite combination of our modern electronic bidet seat perfectly paired with our luxurious close coupled rimless toilet in pure white vitreous china, an absolutely stunning addition to any bathroom or toilet. This close coupled toilet can be paired with all our U style bidet toilet seats. This model is also available in an extended comfort height version which  is 70mm or 3 inches higher than the standard version. please call to request order details

Delivered in 2~7 working days from receipt of order depending on your location, There is an additional charge of £39.95 for areas in the U.K. considered "Remote" by our courier and £89.95 to Europe and non-mainland U.K. Please click for REMOTE AREA LOCATIONS

Installation Requirements

• Connection piping to the sewerage waste system
• The seat requires a mains water supply of between 0.07 Mpa (0.7 bar) and 0.74 Mpa (7.4 bar) pressure. The inlet for the seat water supply is on the left facing the toilet pan.
• A fully compliant power source to the seat (in U.K. to BS7671) 240V 50Hz 1.7Kw max.
• Before Installing if you have any doubts please call 01442 843746 for technical guidance.

Downloads

UB-6600U User & Installation Guide

UB-6600U Bottom Entry Installation Quick Guide

General Specification

Pan and Cistern

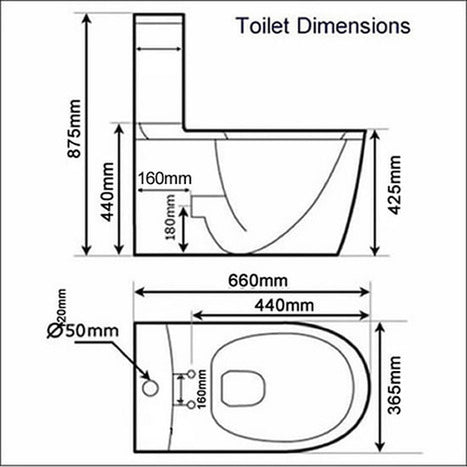

• Standard height contemporary modern design
• Dual flush cistern 3/6 litre Flush with Chrome Flush Button, bottom RH water connection
• Made from High-Quality Vitreous China
• Suitable for horizontal & bottom soil pipe connections, click HERE to view waste pipe
• Pan Assembly quick guide click HERE
• Click HERE to view Video demonstrating how to adjust the water fill volume and dual flush discharge volumes

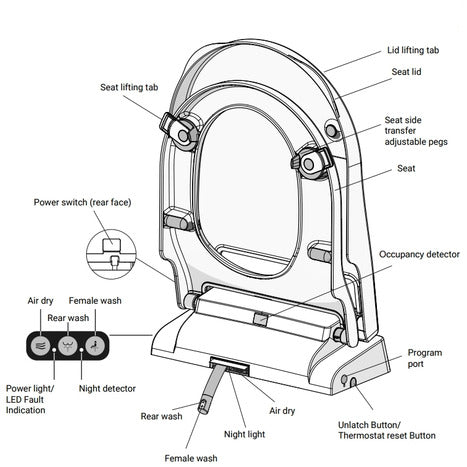

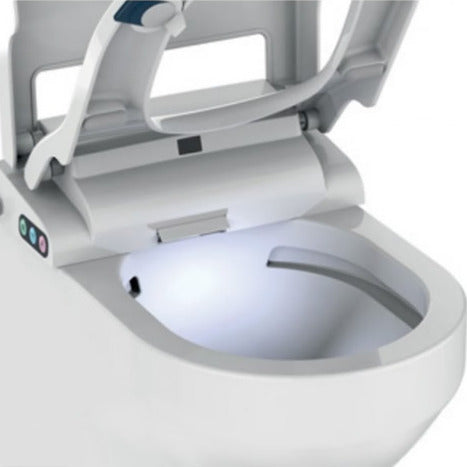

1.  Electronic Bidet Seat

• Made from germ-resistant plastic for maximum hygiene
• Concealed water and electrical connections

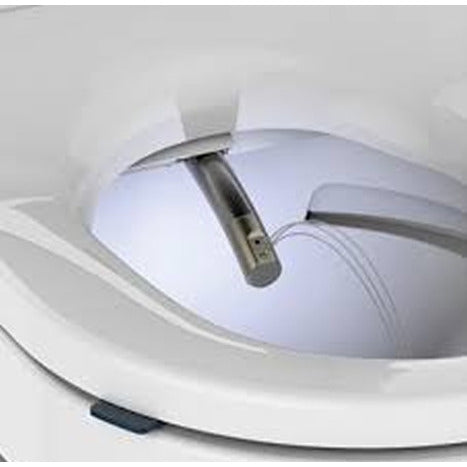

• Posterior cleansing with a variable spray for all the family
• Feminine cleansing, separate nozzle exclusively to assist with feminine hygiene, especially effective during menstruation or pregnancy.
• Variable spray
• Adjustable wands position
• Jet type: continuous or with a variable flow for better cleansing action
• Warm water with variable temperature setting
• Warm air dryer with variable temperature setting
• Night Light with auto smart detect
• Continuous water heating

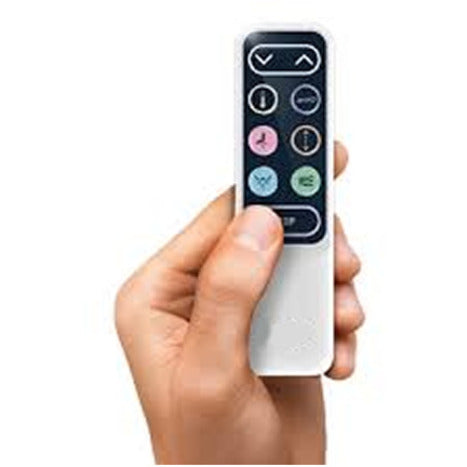

• Remote control with basic function buttons on side of the seat
• Automatic cleaning of the wands before and after each use
• Soft closing seat and lid with easy grip tabs & side transfer stabiliser pegs

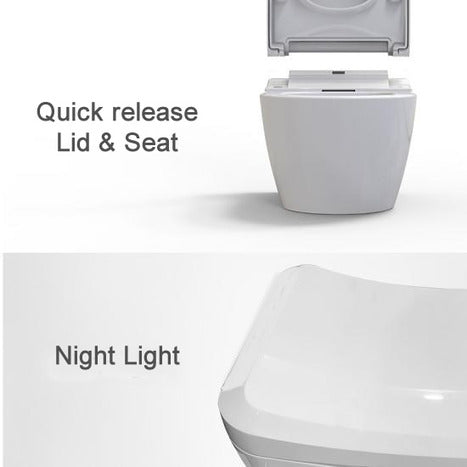

• Quick release seat and lid for easy cleaning and support commode chair use
• Concealed quick release water and power connections
• Occupancy sensor to prevent overspray
• Self-check
• Easy installation

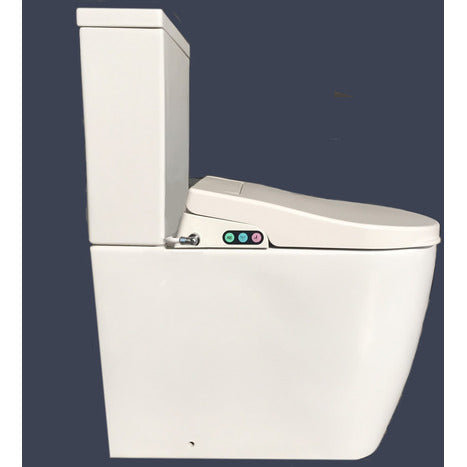

• Water connection on left side of the seat facing toilet, power cable connected center back of seat
• Pan pure white china
• Net weight with the pan; 48Kg

2. Safety

• Electricity Safety Protection:
• Temp Fuse
• IP24 rated

3. Materials

• Easy detachable: a convenient bracket plate provides easy attachment and detachment of the main body for easy toilet cleaning.
• Soft-closing detachable lid and seat: Function to make lid and seat open and close smoothly
• Easy lid removal: Lid is easy to install and remove for perfect cleaning and commode chair use.
• Toilet pan: pure white vitreous china

4. Power rating and energy consumption

• Power rating: AC 230 V, 50 Hz
• Energy consumption: 1660 - 1975 W
• Mains Water: Pressure 0.7 ~ 7.4 Atm

5. Warm Air Dryer

• 3 minute standard drying cycle
• Temperature 6 temperature settings (40-52°C approx.)
• Fan speed: 5 adjustable speed settings
• Safety Device: Thermal Cut Out Fuses/Thermostat
• Power Consumption: 350W

6. Warranty

• Electronic seat 2 years warranty parts and labour, K, ISO9001
• Toilet/cistern 2 years all parts

7. International Certification

• CE, EN 1717 back flow prevention,
• Please Note. To achieve compliance an ‘Approved’ double check valve or some other no less effective back-flow prevention device providing backflow prevention protection to at least fluid category two must be fitted at the point of connection between the water supply and the water inlet to this appliance.
