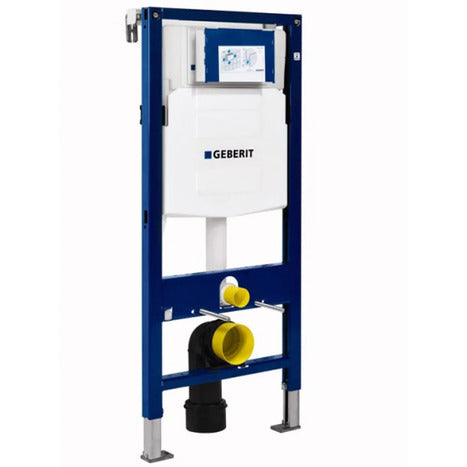

The Geberit Duofix WC Frame 1.12m Part nI 11.383.00.5 is constructed using heavy-duty steel, then galvanized to give superb durability. It features a full-height frame ideal for installation in stud walls, includes a top-quality cistern with full and half flush options and offers tool-free maintenance.
The Geberit Duofix WC Frame 1.12m Part nI 11.383.00.5
Constructed using heavy-duty steel, then galvanized to give superb durability. It features a full-height frame ideal for installation in stud walls, includes a top-quality cistern with full and half flush options and offers tool-free maintenance.
Installation Application:
For drywall construction
For installation in part- or room-height pre-wall installations
For installation in room-height installation walls
For installation in part- or room-height Geberit Duofix system walls
For wall-hung WCs with connection dimensions in accordance with EN 33:2011
For wall-hung WCs with projection up to 62 cm
For floor constructions 0–20 cm
Specification
Self-supporting frame, powder-coated
Frame with 9 mm drilling holes for fastening in wood frame construction
Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
Galvanised feet
Feet adjustable 0–20 cm
Non-slip leg supports
Rotatable foot plates
Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
Connection bend can be mounted without tools at different depths, adjustable range 45 mm
Fastening for connection bend, sound-absorbing
Concealed cistern with front actuation
Concealed cistern fully insulated against condensation
Cistern fulfils standard requirements in accordance with EN 14055, Class II
Immediate post flush possible with factory setting
Tool-free installation and maintenance work on concealed cistern
Water supply connection on the rear or top centre
Protection cover box for service opening protects against moisture and dirt
Protection box for service opening can be cut to length
Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
With fastening option for electrical connection
Technical Data
Flow Pressure: 0.1-10 bar
Maximum operating temperature (water): 25°C
Flush Volume (Factory setting): 5.8 and 3 litres
Flush volume small (Adjustment range): 3-4 litres
Product Includes
Water supply connection Rp 1/2’’, compatible with MF, with integrated angle stop valve and hand wheel
Protection box for service opening
2 Wall anchors
Connection set for WC, 90mm
Connection bend 90° made of PE-HD, 90mm
Adaptor socket made of PE-HD, 90mm
2 Protection plugs
Cup for flush volume reduction 4.0/2.6 litres
2 Threaded rods M12
Fastening material
Note Well
Any boarding must be fixed tight up against the face of the Duofix frame and screwed directly to the frame
The cistern can be operated with used with mains water or fltered clean rain water
Flush valve features settings to enable either a 6 l and 3 l flush or a 4.5 l and 3 l flush.
N.B.This frane WILL require a comapatable Geberit flush plate of your choosing (sold seperatly)
