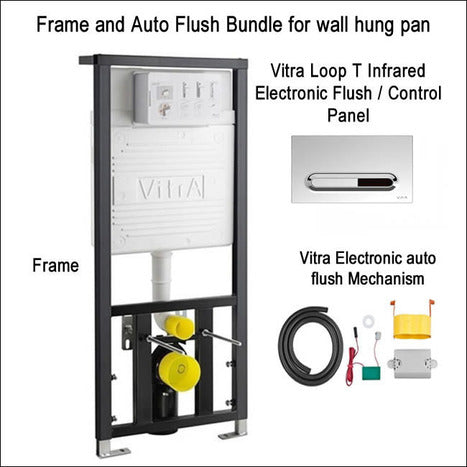

VitrA Wall hung toilet support frame with auto flush bundle

This bundle provides frame, dual flush plate with infra red detection and electric actuator mechanism, all the parts required for installing a wall hung pan with automatic flushing, Ideally suited to the VitrA V Care Essential and Comfort wall hung bidet toilets.  Front actuation, with Vitra Loop T Infrared Electronic Control Panel WC Flush Plate. The infra red cell senses presence in the close proximity of the flush plate, a presence of between 6 ~ 40 seconds will operate a half flush, presence detection greater than 40 seconds will give a full flush

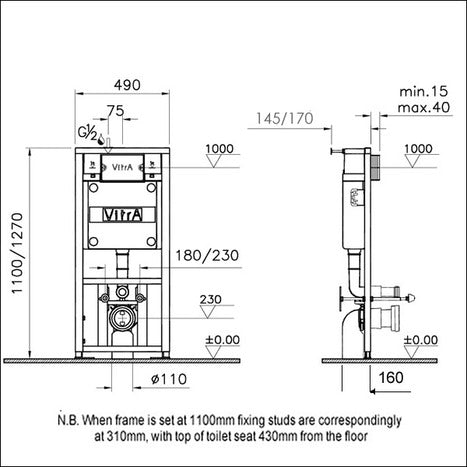

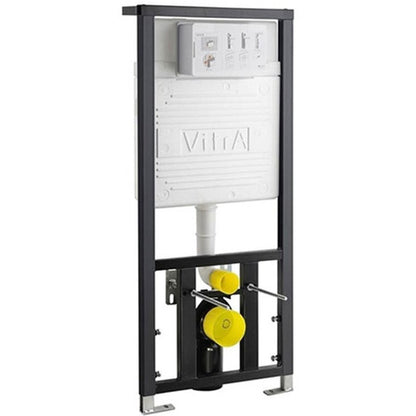

Frame specification:

• Suitable for modern wall hung WC pans with 18 /23 cm pan fixings
• Installation type: rapid ;Installation (front wall: light weight construction-gypsum plate, back wall: brick
• 12cm frame depth.
• Working Pressure: 0.5 - 10 Bar (recommended 3-5 Bar)
• Water Saving
• Strength and Stability, designed to support weights of up to 400kg.
• Regular frames can be used in solid wall, stud wall and double stud walls
• Control system: electronic and mechanic control
• Water capacity: 3-6L (adjustable)
• Height: 1100 / 1270 mm
• Width: 490 mm
• Depth: 145 - 170mm
• 5 year, Full VitrA Manufacturer's Warranty

Vitra Loop T Infrared Electronic Control Panel WC Flush Plate:

• Vitra Loop T Infrared Electronic Control Panel WC Flush Plate
• Chrome Plated
• Electronic operation
• Dual flush control
• 244 x 8 x 165mm

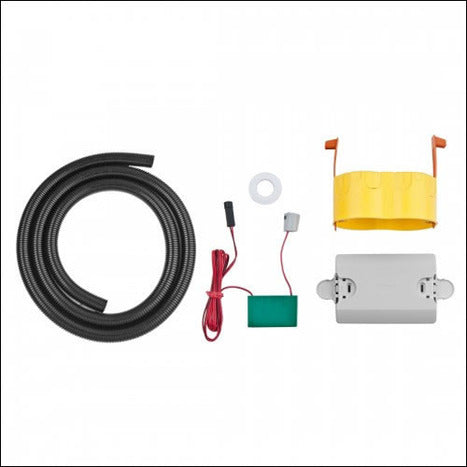

Vitra Electronic Auto Flush Mechanism:

• Manufacturer: Vitra
• EAN: 8693405356357
• MPN: 300-1028
• Brand: Vitra
• Range: For use in conjunction with Loop T - infrared flush plate
• Product Type: WC Dual Flush
• Manufacturer's Guarantee: 5 Years

Click HERE to view a short Installation video demonstrating how to install the VitrA wall frame

Standard shipping in 5 ~ 7 days, Express  options available

CE Certified for installation within the European Union
